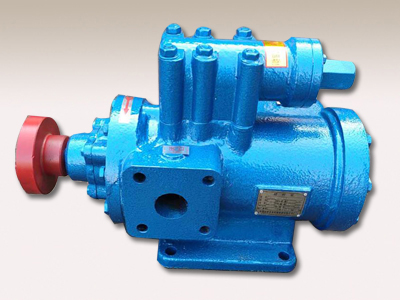

乳化瀝青泵依靠螺桿相互嚙合的容積變化來輸送液體，當螺桿轉動時，吸入腔一端的密封腔連續地向排出腔一端作軸向運動，使吸入腔的容積增大，壓力降低，液體在壓差作用下沿吸入管進入吸入腔，隨著螺桿的轉動，密封腔內的液體連續而均勻地沿軸向移至排出腔。 該泵主要用于在常溫下不能輸送的高粘度潤滑性液體，常作為瀝青、重燃油、渣油、原油的輸送或噴燃用。熱載體可以是蒸汽和燃油、熱水，冷載體可以是氣體或液體?，F廣泛用于公路建設中瀝青的輸送。一般較高工作溫度≤250℃；_過此溫度在訂貨時請說明。
乳化瀝青泵用途:
用來輸送溫度≤150℃,粘度5-760cSt,不含固體顆粒,無腐蝕性,具有潤滑性能的介質.
適用壓力范圍:0.6-2.5Mpa;
適用流量范圍:0.6-123m3 /h.
乳化瀝青泵主要應用于燃油輸送,液壓工程,船舶工程,石化及其他工業、
乳化瀝青泵選泵注意事項
| 型號 | 排出壓力PMPa | 流量Q | 轉速nr/min | 必需汽蝕余量rm | 效率η% | 電動機 | ||
| m3/h | L/min | 功率kw | 型號 | |||||
| 25×4-46 | 1.0 | 0.8 | 13 | 1450 | 4 | 62 | 0.75 | Y802-4 |
| 2.5 | 0.6 | 10 | 60.6 | 1.5 | Y90L-4 | |||
| 1.0 | 2.0 | 33 | 2900 | 4.5 | 59.4 | 1.5 | Y90S-2 | |
| 2.5 | 1.6 | 26 | 69 | 3 | Y100L-2 | |||
| 30×4-46 | 1.0 | 1.6 | 26 | 1450 | 4.5 | 63.5 | 1.1 | Y90S-4 |
| 2.5 | 1.2 | 20 | 61 | 2.2 | Y100L1-4 | |||
| 1.0 | 3.6 | 60 | 2900 | 5 | 60 | 2.2 | Y90L-2 | |
| 2.5 | 3.2 | 53 | 69 | 4 | Y112M-2 | |||
| 36×4-46 | 1.0 | 2.8 | 46 | 1450 | 4.5 | 66 | 2.2 | Y100L1-4 |
| 2.5 | 2.4 | 40 | 66.5 | 4 | Y112M-4 | |||
| 1.0 | 6.5 | 108 | 2900 | 5 | 60.5 | 4 | Y112M-2 | |
| 2.5 | 6 | 100 | 72 | 7.5 | Y132S2-2 | |||
| 42×4-46 | 1.0 | 4.8 | 80 | 1450 | 5 | 62 | 4 | Y112M-4 |
| 2.5 | 4.2 | 70 | 73 | 5.5 | Y132S1-4 | |||
| 1.0 | 10.5 | 175 | 2900 | 5.5 | 61 | 5.5 | Y132S1-2 | |
| 2.5 | 10 | 166 | 72 | 15 | Y160M2-2 | |||
| 45×4-46 | 1.0 | 6.3 | 106 | 1450 | 5 | 70 | 3 | Y100L2-4 |
| 2.5 | 5.9 | 99 | 74 | 7.5 | Y132M-4 | |||
| 1.0 | 13.5 | 225 | 2900 | 5.5 | 60 | 7.5 | Y132S2-2 | |
| 2.5 | 13 | 217 | 75 | 15 | Y160M2-2 | |||
| 60×4-46 | 1.0 | 15.5 | 255 | 1450 | 5 | 71.3 | 11 | Y160M-4 |
| 2.5 | 14.5 | 245 | 74 | 15 | Y160L-4 | |||
| 1.0 | 32 | 533 | 2900 | 5.5 | 63 | 18.5 | Y160L-2 | |
| 2.5 | 31.5 | 525 | 77 | 37 | Y200L2-2 | |||
| 70×2-46 | 0.6 | 24 | 400 | 1450 | 5 | 71 | 7.5 | Y132M-4 |
| 1.0 | 23.5 | 390 | 75 | 11 | Y160M-4 | |||
| 1.6 | 22.5 | 370 | 76 | 15 | Y160L-4 | |||
| 70×4-46 | 1.0 | 24.5 | 408 | 1450 | 5 | 72.5 | 18.5 | Y180M-4 |
| 2.5 | 23.5 | 392 | 79 | 30 | Y200L-4 | |||
| 80×2-46 | 0.6 | 36.5 | 608 | 1450 | 5 | 72 | 11 | Y160M-4 |
| 1.0 | 35 | 594 | 75.5 | 18.5 | Y180M-4 | |||
| 1.6 | 34.5 | 575 | 76.5 | 22 | Y180L-4 | |||
| 80×4-46 | 1.0 | 37 | 617 | 1450 | 5.5 | 72 | 30 | Y200L-4 |
| 2.5 | 35 | 590 | 78.1 | 45 | Y225M-4 | |||
| 100×2-46 | 0.6 | 72.5 | 1208 | 1450 | 5 | 73 | 22 | Y180L-4 |
| 1.0 | 71 | 1183 | 77 | 37 | Y225S-4 | |||
| 1.6 | 60.5 | 1158 | 79 | 45 | Y225M-4 | |||
| 100×4-46 | 1.0 | 72.5 | 1208 | 1450 | 5.5 | 73 | 55 | Y250M-4 |
| 2.5 | 70 | 1165 | 78.5 | 75 | Y280S-4 | |||
| S100×3-27 | 0.6 | 72 | 1196 | 1450 | 6 | 62 | 22 | Y180L-4 |
| 1.6 | 70 | 1160 | 72 | 55 | Y250M-4 | |||
| 2.5 | 69 | 1145 | 74 | 75 | Y280S-4 | |||
| S120×3-27 | 0.8 | 123 | 2055 | 1450 | 6 | 74.5 | 55 | Y250M-4 |
| 1.5 | 120 | 2010 | 76 | 90 | Y280M-4 | |||
| 2.5 | 115 | 1920 | 78.5 | 132 | Y315M-4 | |||
